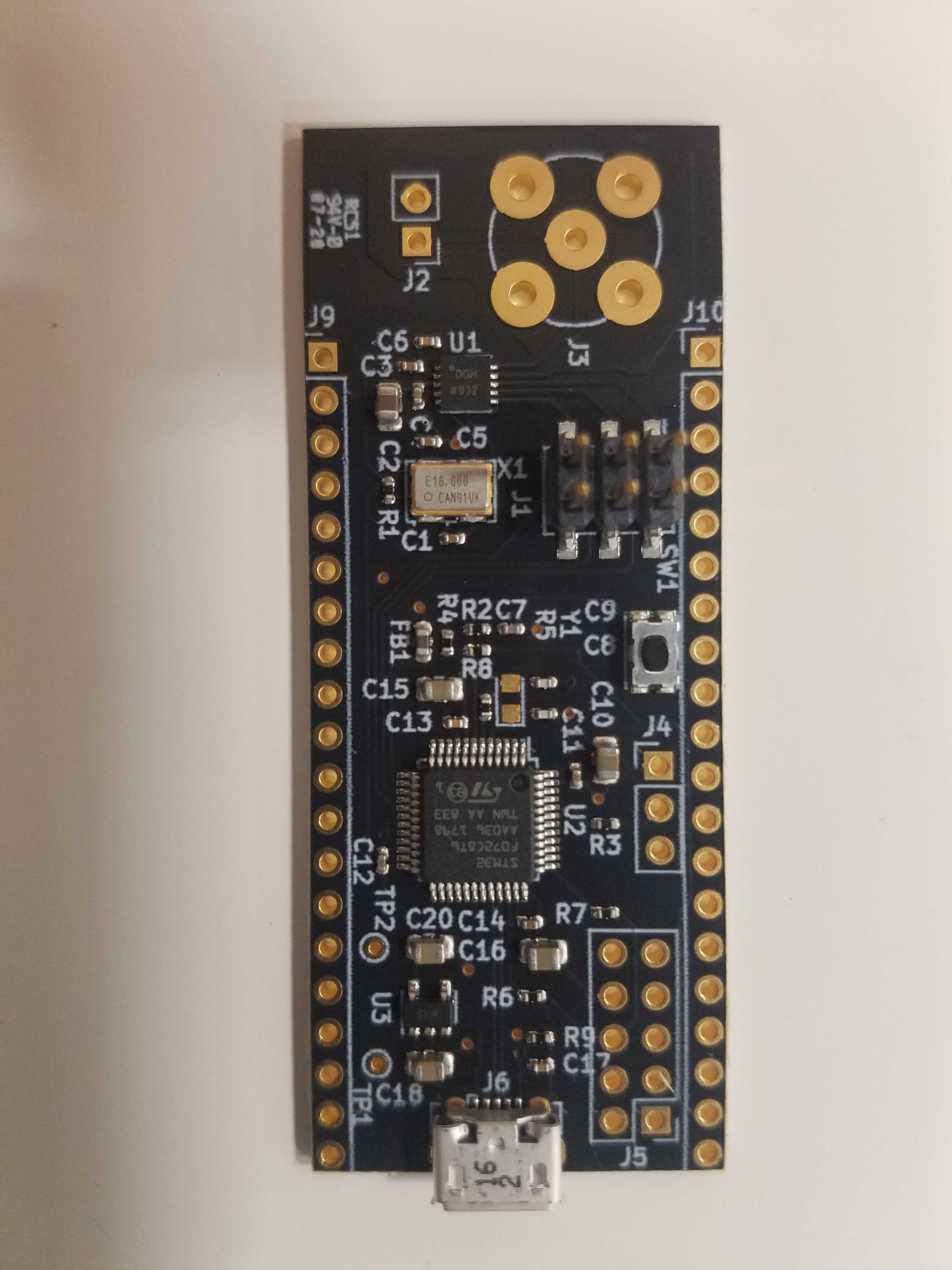

Here’s the build log for week elevn of development for the open source function generator I’m trying to prototype and build.

Do you want to try one out? Head over to this page to get the download.

Each day’s entry represents an hour’s work per day - the hour before I leave for my job every weekday morning. (This is more accurately described now as “the hour before I start working on my real job every day” given the coronavirus lockdown situation.)

I’ll be taking this week (ending April 24, 2020) off of bFunc development as a little vacation. I’m gonna take a week to sleep in, write a retrospective, and work on a little consulting side project I picked up. bFunc development starts again in earnest on April 27, 2020!

This is my log for the week ending April 17, 2020. Here’s links to the prior weeks’ logs:

The design doc for this project is available if you’re into design documents/philosophy.

All of my hardware and software source files are on GitHub. Check ‘em out!

April 17, 2020

  • Starting writing the retrospective for the first three months of bFunc work.

April 16, 2020

  • This day’s productivity was lost to insomnia.

April 15, 2020

  • Turns out that post from Fahrzin Hemmati’s blog was just the ticket. The jump to the bootloader is working! As is the DFU reprogramming!
    • Fahrzin’s secret sauce: define a section of memory in the linker script specifically to hold the bootloader magic number. Giving that memory its own section prevents it from getting zeroed out on reboot. Thanks Fahrzin!
  • A few notes on this:
    • There doesn’t seem to be a way to software-reset the board back into its normal operating state. It seems to require a power cycle - getting unplugged from USB, and then plugged back in - to restart with the new firmware.
    • It would be really slick to make this an entirely software process, where the chip just reboots in its normal operating mode. This is a to-do for the backlog, at this point. I need a break from bootloader stuff for a while. 🙂
  • This is a really sensible point to get rigorous about code tagging and version tracking.
    • The Embedded Artistry post I pointed to a while back was a great resource for how to version embedded code, but I’ll be honest - it was a little further into the git weeds than I’ve currently ventured.
    • Specifically - it relies on git tag, which I’m very unfamiliar with.
    • This post was a great intro to git tag - it’s my reference from here on out.
  • A logical next step for this is to add in a little GUI functionality to handle a few other components of upgrading the firmware:
    • Grab the latest firmware image from the internet
    • Put the board into upgrade mode
    • Find the proper DFU device in the DFU registry
    • Reprogram the flash using DFU
    • (Ideally) resetting the board from DFU

April 14, 2020

  • I was stumped by my progress with the bootloader, so I asked a question on Reddit.
  • /u/farptr pointed out that I was trying to use an __initialize_hardware_early() macro that’s exclusive to µOS++, which I obviously don’t have as I’m not using µOS++.
  • /u/farptr made a great suggestion - just move that check for the magic value into SystemInit() instead. This works, and gets the part un-stuck, but never seems to branch to the bootloader successfully.
  • I think what’s happening is that the variable that’s storing the magic number, dfu_reset_to_bootloader_magic, is getting stomped on and reset to zero by some earlier function in the startup script.
  • This blog post shows a way to do that using a bootloader flag defined in the linker script. That seems like a reasonable fix.

April 13, 2020

  • Diving into getting the USB boot loader working, and jumped-to through software
  • Added an upgrade command to the parser that resets the MCU in boot loader mode
    • Does this device show up when we run dfu-util -l to list all DFU devices?
    • It does when we re-strap the BOOT0 header.
    • When we run the upgrade command, however - nothing!
    • After doing some research - I think I’m getting the stack pointer location wrong
    • The default stack pointer location is at the first address of the system memory block - 0x1fffc800
    • We can check what’s there using gdb - yields a value of 0x200014a8
    • A little more help from gdb reveals that we’re never getting to __initialize_hardware_early() - the system never calls the function!
    • Makes me wonder - where is __initialize_hardware_early() defined, anyway?
    • Running grep -rnw "__initialize_hardware_early" -r ./ in my project directory doesn’t show any references except for the ones in my source code and linker files

April 12, 2020

  • Implement this code to reset into the STM32 ROM bootloader
